DIAMOND PRO® PIN SYSTEM
Architects and engineers choose the Diamond Pro® Pin System retaining wall system to create flexible, cost effective solutions for a broad range of large commercial, municipal and residential retaining wall projects.
Features & Benefits:

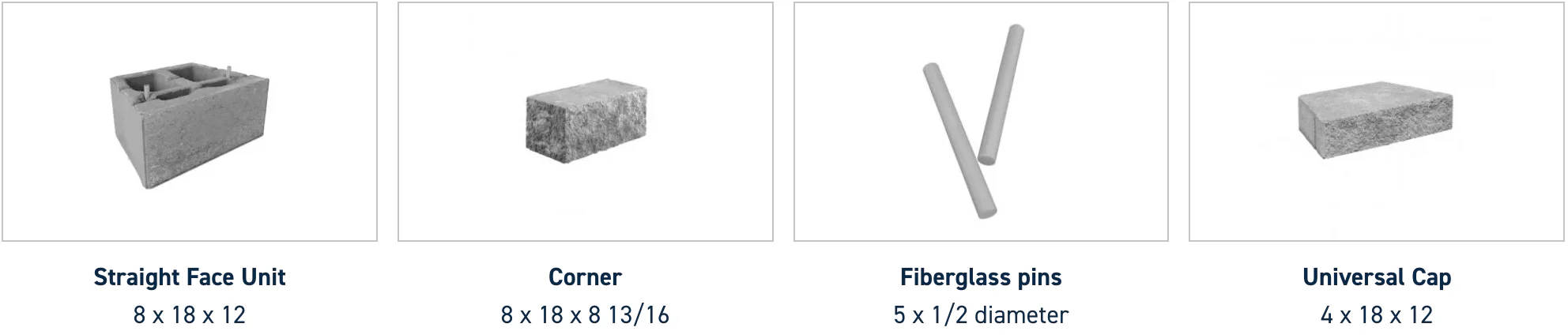

- Pin system installation method
- Large cores for ease in handling
- Ease of installation with oversized pin aligning cores
- Pin cores allow for multiple batter options
- Builds walls in excess of 50 feet when combined with geosynthetic reinforcement
- One square foot of wall face per block
- Gravity walls can be built up to 4 feet high, including the buried course, with 7.1 degree batter
- Minimum outside radius, measured on the top course to the front of the units: 4 feet
- Minimum inside radius, measured on the base course to the front of the units: 6 feet
- Setback/System Batter: Near Vertical and 1”/7.1º; additional system batter can be created by alternating pin placement on each course of wall
Swatches represent product color only, not surface texture, dimension and/or shape.
Original: $8.49
-65%$8.49
$2.97More Images
DIAMOND PRO® PIN SYSTEM
Architects and engineers choose the Diamond Pro® Pin System retaining wall system to create flexible, cost effective solutions for a broad range of large commercial, municipal and residential retaining wall projects.
Features & Benefits:
- Pin system installation method
- Large cores for ease in handling
- Ease of installation with oversized pin aligning cores
- Pin cores allow for multiple batter options
- Builds walls in excess of 50 feet when combined with geosynthetic reinforcement
- One square foot of wall face per block
- Gravity walls can be built up to 4 feet high, including the buried course, with 7.1 degree batter
- Minimum outside radius, measured on the top course to the front of the units: 4 feet
- Minimum inside radius, measured on the base course to the front of the units: 6 feet
- Setback/System Batter: Near Vertical and 1”/7.1º; additional system batter can be created by alternating pin placement on each course of wall
Swatches represent product color only, not surface texture, dimension and/or shape.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Architects and engineers choose the Diamond Pro® Pin System retaining wall system to create flexible, cost effective solutions for a broad range of large commercial, municipal and residential retaining wall projects.
Features & Benefits:
- Pin system installation method
- Large cores for ease in handling
- Ease of installation with oversized pin aligning cores
- Pin cores allow for multiple batter options
- Builds walls in excess of 50 feet when combined with geosynthetic reinforcement
- One square foot of wall face per block
- Gravity walls can be built up to 4 feet high, including the buried course, with 7.1 degree batter
- Minimum outside radius, measured on the top course to the front of the units: 4 feet
- Minimum inside radius, measured on the base course to the front of the units: 6 feet
- Setback/System Batter: Near Vertical and 1”/7.1º; additional system batter can be created by alternating pin placement on each course of wall
Swatches represent product color only, not surface texture, dimension and/or shape.
